Thermal Cyclers
1014-PP-01 71515
Biometra TOne Thermal Cyclers by Analytik Jena
Read more
Print
Want a quote quickly ?
提交QuickQuote请求Product Details
Product Details
- Economical, quiet operation
- Suitable for routine lab work as well as complex PCR optimization
- Controls sample block temperature without under- or over-shooting programmed target temperature
- High Performance Smart Lid (HPSL) Technology uses predefined pressure control for highly reproducible conditions
- Linear Gradient Tool for easy gradient programming using the primer annealing temperature
- 快速增加智慧h heating and cooling rates up to 4°C/sec.
- Sealed sample block prevents condensation from contacting instrument components
- Low noise emission of max. 45 dB
- Includes 96-well sample blocks (0.2 ml)
Features & Benefits
Features and Benefits
Features and Specifications
Print
CopyCopied
Additional Features
- Automatically restarts after power failure
- Automatic lid opening mechanism
- 7" color touchscreen display and intuitive software interface
- Preprogrammed templates meet a wide variety of applications
- Intuitive multi-step programming allows users to easily design novel thermal cycling protocols
- Direct spreadsheet and graphical programming allow users to quickly modify cycling parameters
- Built-in extended self-testing quickly assesses the thermal cycler performance and summarizes results in a storable report format
- Provides optimum contact pressure regardless of PCR tubes
- Heated lid opens at a 90° angle for easy sample access and user safety
| Technical Specifications for Biometra TOne 96 and 96G (with Linear Gradient Tool) | ||
|---|---|---|
| Model | Biometra TOne 96 | Biometra TOne 96G |
| Gradient Span | N/A | 0.1 to 20.0°C |
| Dimensions | 10.2 x 16.9 x 8.3 in. (260 x 430 x 210 mm) | |
| Block Capacity | 96 x 0.2 ml, 96-well microtiter plates, 12 x 8 well strips 0.2 ml | |
| Block Coating | Special alloy | |
| Block Material | Aluminum | |
| Max. Heating Rate | 4.0°C/sec | |
| Average Heating Rate | 3.8°C/sec | |
| Temperature Uniformity | 95°C ± 0.60°C after 15s 70°C ± 0.30°C after 15s 55°C ± 0.20°C after 15s |
|
| Control Accuracy | ± 0.1°C | |
| Display | 7“ color touchscreen | |
| Noise emission | Approx. 45 dB max. | |
| Interfaces | USB A, Ethernet | |
| Software | User-specific quick start option for the five most recent programs; program preview before start; option for toggling between table and graph programming mode; linear gradient tool; service info file (SINF) generation; expanded self-test; adjustable heating and cooling rates; gradient temperature diagram view; Ethernet-based PC control; comprehensive user administration tool | |

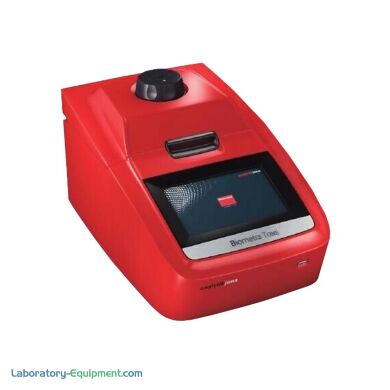

Biomera Tone Thermal Cycler
Lid opens at a 90° angle for easy access to sample block and the high-performance smart lid features a slip clutch that maintains constant contact pressure with any size plastic ware

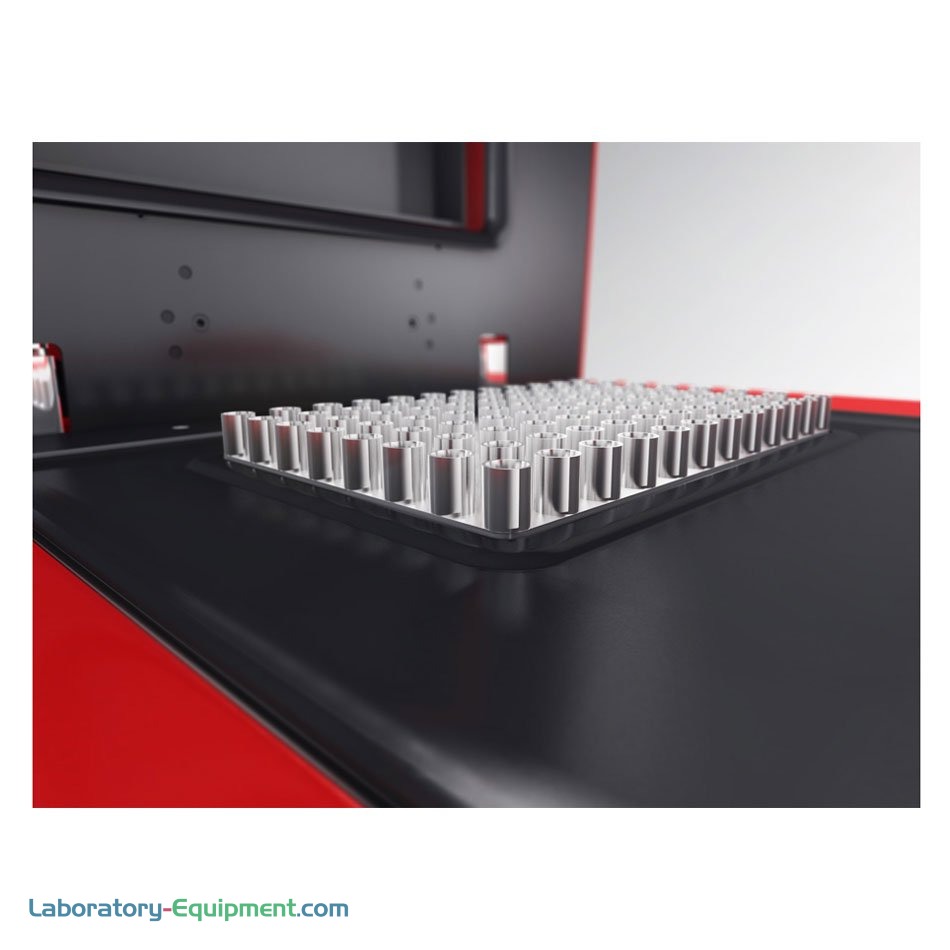

Biometra TOne Heating Blocks
Biometra's heating blocks increase product life span by preventing condensation from forming on the heating elements.

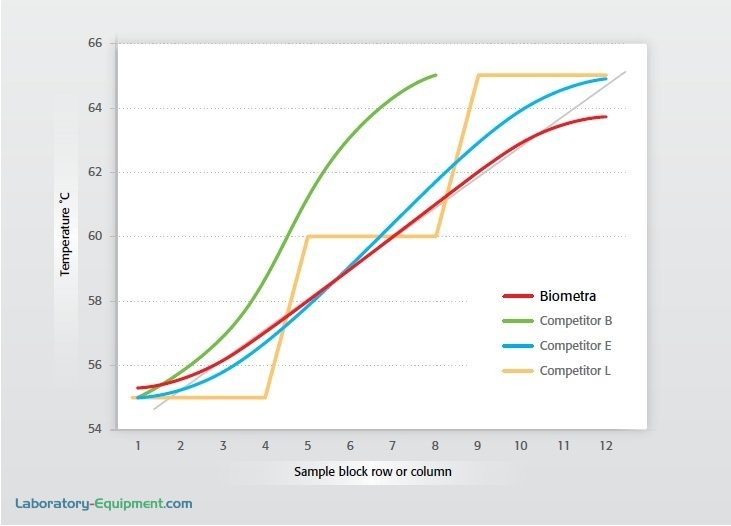

Biometra TOne Thermal Cycler Gradient Function
Biometra Tone Thermal Cycler allows users to program defined temperature intervals between each row of the sample block for optimum annealing temperature under experimental conditions and subsequently apply the optimum temperature value to routine applications.
