Lab Centrifuges
1108-PP-05 73119
Heraeus Fresco Microcentrifuges by Thermo Fisher Scientific
Read more
Manufactured By: Thermo Fisher
Print
Want a quote quickly ?
提交QuickQuote请求Product Details
Product Details
- Maximum speed RCF: Centrifuge 1,180 x g; Wash 190 x g
- Maximum capacity: 24 tubes
- Tube Dimensions: 12 x 75 mm or 10 x 75 mm
- Cycle settings: 1 to 9
- Four-stage process display: wash, centrifuge decant, agitate
- Easy sample balancing with color-coded tubes
- Process Time Per Cycle: 60 seconds (Automatic centrifugation time: 35 seconds)
- 一个utomatic timer: 1 to 99 seconds in 1-second increments
- Manual timer: 1 to 999 seconds in 1-second increments
- Material: stainless steel rotor body
- Set decanting speed for optimal corpuscle dryness
- Optional overflow method during centrifugation step improves corpuscle washing
- 一个mbient temperature: +2° to +35°C
- 噪声:< 53 dba
- Features:removable catch basin, rotor and rotating bowl, top-mounted saline distribution reduces cross-contamination, easy-to change pump tubing
- Safety Features: Door interlock, Dual over-speed detector, Saline level sensor
- 应用程序:一个BO compatibility, antibody screening, Antiglobulin tests, Rh testing and Cross matching
- Certifications:UL listed, CSA certified, CE marked, FDA Class 2, IVD compliant
- Standards:CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1, CAN/CSA-C22.2 No. 61010-2-020-09- Part 2-020, IEC 61010-2-020, IEC 61010-2-101
- Compatible rotors:75000020 24-place rotor assembly with distributor; 75000021 12-place rotor assembly with distributor
- Processes samples faster; all models accelerate up to 21,000 xg in just 12 seconds
- Fresco temperature range: -9° to 40°C, ±1°C (15.8°F to 104°F, ±33.8°F)
- Fresco 21 models designed for high-end research applications; reduce spin times by up to 20%
- Timing: 1 to 99 minutes, in 1 min. increments plus HOLD
- Refrigerated models offer cooling in just nine (9) minutes
- Strong transparent PPSU lids are more chemical-resistant than polycarbonate and metallic lids
- Compliance: IEC 61010-1, IEC 61010-2, IEC 61010-020
- 所有models include standard rotor
Lab Centrifuges
-
Thermo Scientific Hereaus Pico 21 Ventilated and Fresco 17 Refrigerated Microcentrifuges
-
Thermo Scientific Hereaus Fresco 17 Refrigerated Microcentrifuge
-
Thermo Scientific Hereaus Pico 21 Ventilated Microcentrifuge
Heraeus Pico 21 and Fresco 17 Microcentrifuges meet complex micro-volume protocol for ventilated or refrigerated centrifugation|1108-PP-02displayed
Thermo Scientific Hereaus Pico 21 Ventilated and Fresco 17 Refrigerated Microcentrifuges
Heraeus Pico and Fresco Microcentrifuges speed up micro-volume sample preparation processes; ideal for routine lab work or high-end research applications

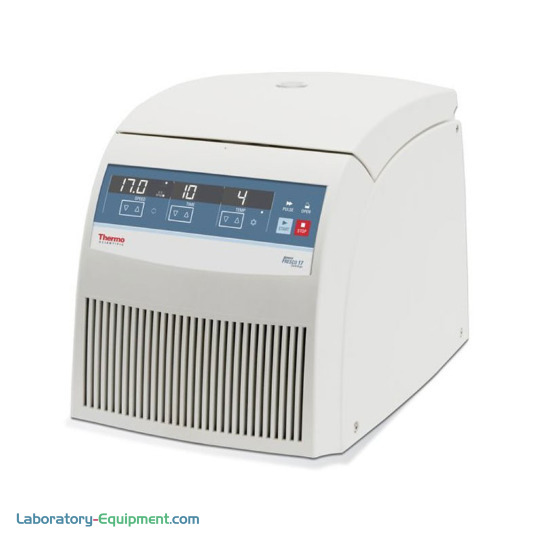

Refrigerated Heraeus Fresco 17 microcentrifuge from Thermo Fisher spins samples at 13,300 rpm|1108-09displayed
Thermo Scientific Hereaus Fresco 17 Refrigerated Microcentrifuge
Refrigerated Heraeus Fresco 17 microcentrifuge from Thermo Fisher spins samples at 13,300 rpm. Control operations using the microprocessor control pad.

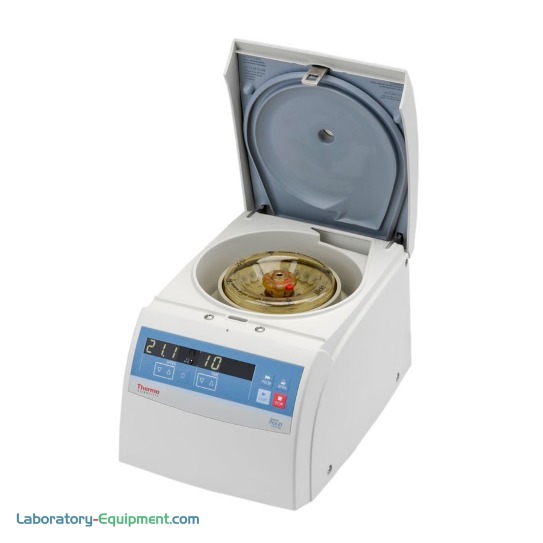

Ventilated Heraeus Pico 21 microcentrifuge from Thermo Fisher spins samples at 14,800 rpm|1108-03displayed
Thermo Scientific Hereaus Pico 21 Ventilated Microcentrifuge
Ventilated Heraeus Pico 21 microcentrifuge from Thermo Fisher spins samples at 14,800 rpm. Control operations using the microprocessor control pad.
Features & Benefits
Features & Benefits
Compare Pico and Fresco Models
Print
CopyCopied
Heraeus Pico and Fresco Microcentrifuges from Fisher Scientific
| Model | Pico 17 and 21 (Ventilated) | Fresco 17 and 21 (Refrigerated) | |
|---|---|---|---|
| Dimensions (W x L x H) | 9.6 x 13.8 x 8.9 in. (244 x 351 x 226.5 mm) |
11.6 x 17.5 x 12.9 in. (295 x 444.5 x 328 mm) |
|
| Imbalance Recognition | — | Electronic in ventilated centrifuges | |
| Noise Level | <56 dBA | <50 dBA | |
| Temperature Range | — | -9° to +40°C, ±1°C | |
| Net Weight | 24.2 lbs. (11 kg) | 61.7 lbs. (28 kg) | |
| Capacity | 24 x 1.5/2.0 mL | ||
| Timer | 1 to 99 min., 1 min. increments plus HOLD | ||
| Structure/Housing | Sheet metal with attached plastic housing and steel chamber | ||
| Rotor Chamber | Plastic Up to 48 ml of spilled liquid is retained in the chamber and cannot enter the instrument |
||
| Drive | Induction drive without carbon brushes | ||
| Keys and Display | Easy-to-clean keypad and display surface | ||
| Control | Microprocessor-controlled | ||
| Internal Memory | Saves most recent data | ||
| Functions | RCF-selection, temperature control, pretemp | ||
| Door Lock | 一个utomatic door closing and locking starting from an initial hold position | ||
Catalog of CE-Marked Products
Terra offers over 1,700 CE-marked products configured for international voltage requirements
一个vailable Accessories
Popular Accessories
For a full list of accessories, select a product then clickChoose Accessorieson that product page.
-

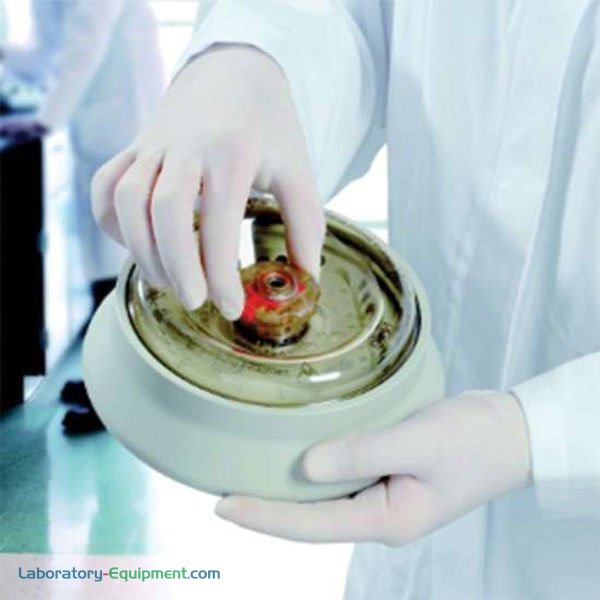

Thermo Scientific Heraeus Fixed-Angle 45 Degree Centrifuge Rotor
Heraeus 36 x 0.5 mL fixed-angle 45° centrifuge rotor from Thermo Fisher easily screws into the Fresco 17/21 and Pico 17/21 microcentrifuges. -

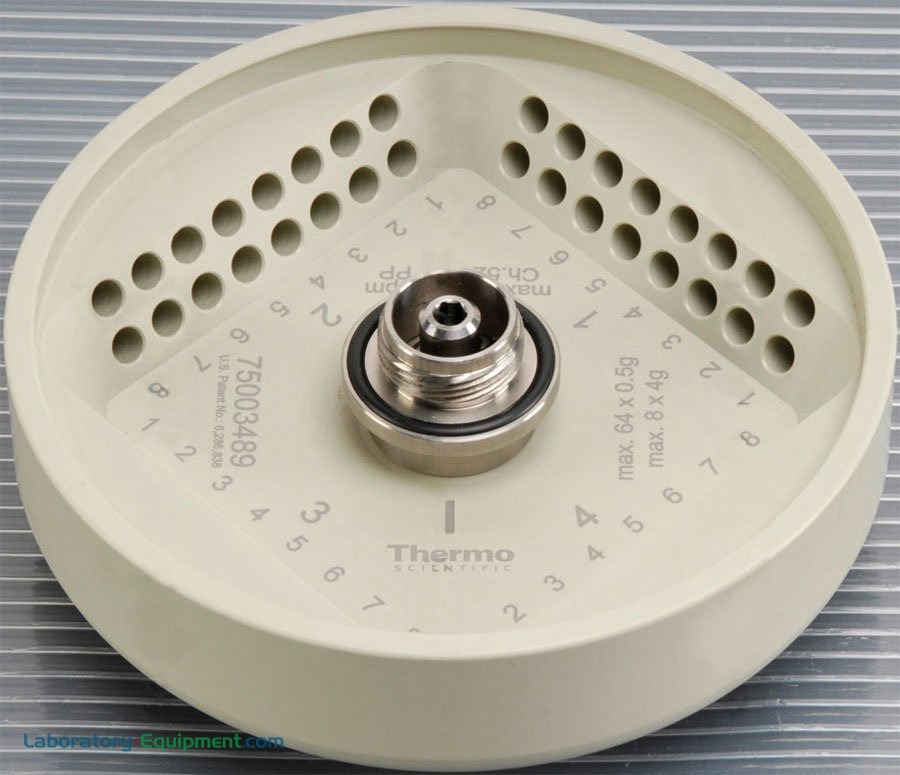

Thermo Scientific Heraeus PCR Strips Fixed-Angle 60 Degree Centrifuge Rotor
Heraeus 8 x 8 PCR strips (0.2 ml tubes) fixed-angle 60° centrifuge rotor from Thermo Fisher easily screws into the Fresco 17/21 and Pico 17/21 microcentrifuges. -
Thermo Scientific Heraeus ClickSeal Transparent Biocontainment Lid
Heraeus ClickSeal Transparent Biocontainment Lid for Pico and Fresco Microcentrifuges from Thermo Fisher. One click secures it in place for safe sample containment.
Other products you may find relevant
-
Group of 4 productsTSX Series High-Performance Blood Bank Refrigerators by Thermo Fisher Scientific From$9,453Some ship in 10 - 16 days -
Usually Ships in 2 - 4 days -
-
-
买配件
Manuals & Resources
Manuals & Resources
Compare Pico and Fresco Models
Print
CopyCopied
Heraeus Pico and Fresco Microcentrifuges from Fisher Scientific
| Model | Pico 17 and 21 (Ventilated) | Fresco 17 and 21 (Refrigerated) | |
|---|---|---|---|
| Dimensions (W x L x H) | 9.6 x 13.8 x 8.9 in. (244 x 351 x 226.5 mm) |
11.6 x 17.5 x 12.9 in. (295 x 444.5 x 328 mm) |
|
| Imbalance Recognition | — | Electronic in ventilated centrifuges | |
| Noise Level | <56 dBA | <50 dBA | |
| Temperature Range | — | -9° to +40°C, ±1°C | |
| Net Weight | 24.2 lbs. (11 kg) | 61.7 lbs. (28 kg) | |
| Capacity | 24 x 1.5/2.0 mL | ||
| Timer | 1 to 99 min., 1 min. increments plus HOLD | ||
| Structure/Housing | Sheet metal with attached plastic housing and steel chamber | ||
| Rotor Chamber | Plastic Up to 48 ml of spilled liquid is retained in the chamber and cannot enter the instrument |
||
| Drive | Induction drive without carbon brushes | ||
| Keys and Display | Easy-to-clean keypad and display surface | ||
| Control | Microprocessor-controlled | ||
| Internal Memory | Saves most recent data | ||
| Functions | RCF-selection, temperature control, pretemp | ||
| Door Lock | 一个utomatic door closing and locking starting from an initial hold position | ||
