•Equipment Type:扫描器
•检测Modes:荧光
•幻灯片容量：1Slide
•检测Wavelength:670/785 nm
•检测通道：2
•制造商Sku：710IR
•Unit of Measure:ea
微阵列产品

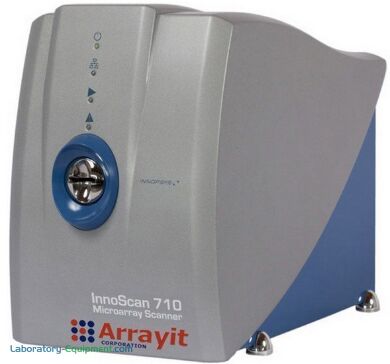

Innoscan®710IR红外微阵列扫描仪，同时共聚焦2色荧光
Read more
制造商Sku：710IR
Manufactured By: Arrayit
打印
Want a quote quickly ?
提交QuickQuote请求
Terra零件＃3031-33-ir
$63,690
通常会寄出15-19 business days
Want it faster ? Read about法斯特拉克
- 单幻灯片容量
- 单位尺寸: 11.02"W x 18.11"D x 14.56"H (280 x 460 x 370 mm)
- 单位重量：35.27磅。（16公斤）
- 激发波长：670 nm和785 nm波长
- 激光器：具有稳定反馈输出的热电冷却激光二极管
- Optical resolution: 3 µm
- 像素大小：3 µm至40 µm
- 激光功率: Adjustable (2 laser power settings available)
- 获得PMT：线性从0到100％
- 自动对焦：实时和自动化
- 检测: True confocal and high performances digital laser/PMT system
- 检测：CY5.5和红外785 nm染料，Alexa 5，Alexa 647和Alexa 660
- Scanning time: 3.5 min per 22 x 74 mm substrate at 10 µm resolution
- 灵敏度：0.05荧光/μm²
- Dynamic auto-focusing increases signal intensity and reduces background noise
- Proprietary rotary scanning architecture allows the fastest scanning speeds, reduces vibrational noise and increases image quality
- Ideal for both in situ and ex situ microarrays
- 兼容IR染料：IR染料800 RS（LI-COR），Dylight 800（Pierce）和Alexa Fluor 790（Invitrogen）
- Uniform scanning on entire microarray surfaces and substrate types (plastic, membrane and glass)
- 紧凑的便携式单元对冲击，振动和幻灯片变形不敏感
- 兼容：阵列微阵列和开放平台微阵列产品的主要品牌
- High resolution acquisition system: scans spot sizes down to 30 µm diameter
- Affordable high sensitivity system with low background noise and low maintenance
- 可用演示 - 安排您设施的演示单位，不包括货运，不包括或低成本。请致电714-578-6124与Evan Messenger联系（[email protected]）
•Equipment Type:扫描器
•检测Modes:荧光
•幻灯片容量：1Slide
•检测Wavelength:670/785 nm
•检测通道：2
•制造商Sku：710IR
•Unit of Measure:ea
•重量，产品：35.27 Lbs
•尺寸，产品：11"W x 18"D x 15"H
•Weight, Shipping:75 Lbs
•尺寸，运输：17“ w x 24” d x 22“ h
•Package Type:箱
Buy Accessories
功能和好处
功能和规格
打印
Copy复制
更多信息
Mapix Software Features:
- High-quality data ensured by automatic spot segmentation; selects only relevant pixels
- Process of gridding performance and quantification adapted to the high resolution of the InnoScan 710 and to the size of generated images
- Highly interactive commands fully correlate between displayed data, pictures and plots for optimal data visualization
- Compatible with all types of microarrays built for ex-situ and in-situ techniques
- 读和分析，蛋白质纳米植物，安捷伦等制造的间隙/交错/橙色包装图案微阵列
- Boosts productivity with batch processing for analysis of large number of microarrays per day (available in Version 3.0.0)
- 第一年的免费在线软件更新
可配置用于完整或模块化自动化：
- 扫描仪控制
- 配置保存（扫描和分析参数）
- Bar code reading
- 通过标记来控制质量
与所有行业标准格式和平台兼容：
- 支持GAL文件和文本和GPR格式的可记录成绩单
- Saves images as 16-bit TIFF files with all read parameters that can be copied in JPEG format
- 支持16位的图像分析使用TIFF文件other scanners [anchor link to Microarray Scanners sub-landing when it’s created]
- 在所有操作系统上运行，例如：Windows，32-和64位Linux和Macintosh
| Model | #710 | #710IR | ＃710Al | ＃710iral |
|---|---|---|---|---|
| 激发波长 | 532 nm and 635 nm | 670 nm and 785 nm | 532 nm and 635 nm | 670 nm and 785 nm |
| 检测 | CY3, Alexa 3, Alexa 546, Alexa 555, Cy5, Alexa 5, Alexa 647, and Alexa 660 |
CY5.5 and infrared 785 nm dyes | CY3，Alexa 3，Alexa 546，Alexa 555，CY5，Alexa 5，Alexa 647和Alexa 660 | CY5.5 and infrared 785 nm dyes |
| 自动加载能力 | 没有自动加载器 | 没有自动加载器 | 24 standard 25 x 76 mm glass substrate slides | 24 standard 25 x 76 mm glass substrate slides |
| Autoloader speed | 没有自动加载器 | 没有自动加载器 | 5 seconds load/unload per substrate slide | 5 seconds load/unload per substrate slide |
| Autoloader throughput | 没有自动加载器 | 没有自动加载器 | 100 min for 24 substrate slides | 100 min for 24 substrate slides |
| 单位尺寸 W x D x H in. (mm) |
11.02 x 18.11 x 14.56 (280 x 460 x 370) |
11.02 x 18.11 x 14.56 (280 x 460 x 370) |
12.99 x 23.62 x 16.53 （330 x 600 x 420） |
12.99 x 23.62 x 16.53 （330 x 600 x 420） |
| 激光 | 具有稳定反馈输出的热电冷却激光二极管 | |||
| Optical resolution | 3 µm | |||
| 像素大小 | 3 µm to 40 µm | |||
| 激光功率 | 可调节（2个激光电源设置） | |||
| 获得PMT | 线性从0到100％ | |||
| 自动对焦 | Real-time and automated | |||
| 检测 | True confocal and high performances digital laser/PMT system | |||
| Scanning time | 每22 x 74毫米底物以10 µm分辨率分别为3.5分钟 | |||
| Scan area | Full substrate slide area (22 x 74 mm) | |||
| Image format | Standard TIFF (16 bit grayscale) | |||
| Barcode reader | 所有格式 | |||
| Power supply | 88 - 264 VAC | |||
| 班级 | I类激光产品 | |||
| Sensitivity | 0.05 fluor/µm² | |||
| Dynamic range | >10,000-fold | |||
| 班级 | I类激光产品 | |||
| Sensitivity | 0.05 fluor/µm² | |||
| Dynamic range | > 10,000倍 | |||
| 统一 | <5％CV | |||
| Format | Open platform glass substrate slides 0.98 x 2.99 in. (25 x 76 mm) | |||
| 计算机接口 | 以太网 | |||
| Image analysis | Highly accurate grid positioning using automatic spot recognition for accurate quantification and 16 bit exportable TIFF data |
|||
| Compatible fluorophores |
|
|||
| 附加的功能 |
|
|||
