标准的壁挂通行证，例如Cleanseam™,BioSafe®和Terra的塑料和间歇式焊接钢板can be installed and ready for operation in a few minutes once the wall cut-out is prepared. Refer to the Operating Manual for full installation details.
该过程很简单，需要您从Terra，两个人和以下其他供应供应的零件：
- 菲利普斯螺丝刀
- 等级
- Fastener hardware appropriate for wall material (drywall, masonry, etc.). The number of fasteners needed is determined by the chamber size
- 填缝剂（如果壁上的瑕疵导致缝隙）
按照以下步骤安装通行室：
- 准备墙壁切口，使其比宽度半英寸（0.5英寸）宽，比通行室高的高度高的宽度和半英寸（0.5英寸）

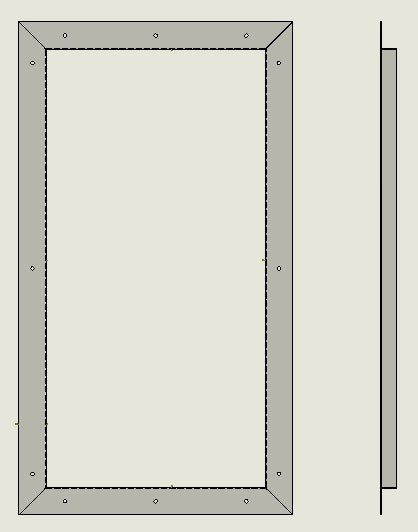

- With a colleague, insert the pass-through chamber into the wall opening from the “clean” side. The welded mounting bracket will fit flush against the wall. Confirm that the chamber is level, then secure the unit to the wall through pre-drilled holes in the framing bracket
- 从“肮脏”的一侧，安装预焊接的预钻头的安装支架，并用螺栓固定在墙壁上
- 在室内的单元下方添加Terra支撑支架，以从墙壁延伸到24英寸或更高。填缝。安装已完成！

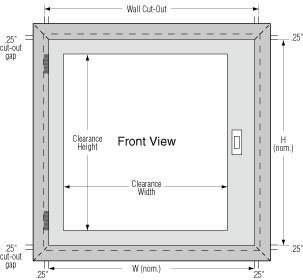

访问间隙
- 宽度= W（名义） - 1.88“
- 深度= D（名义）* - 0.12“
- 高度= H（名义） - 1.25“
- 壁切口= W（名义）+0.5“ x H（名义） + 0.5”
- 塑料室减去0.5英寸。每个门在标称深度增加0.5英寸。
